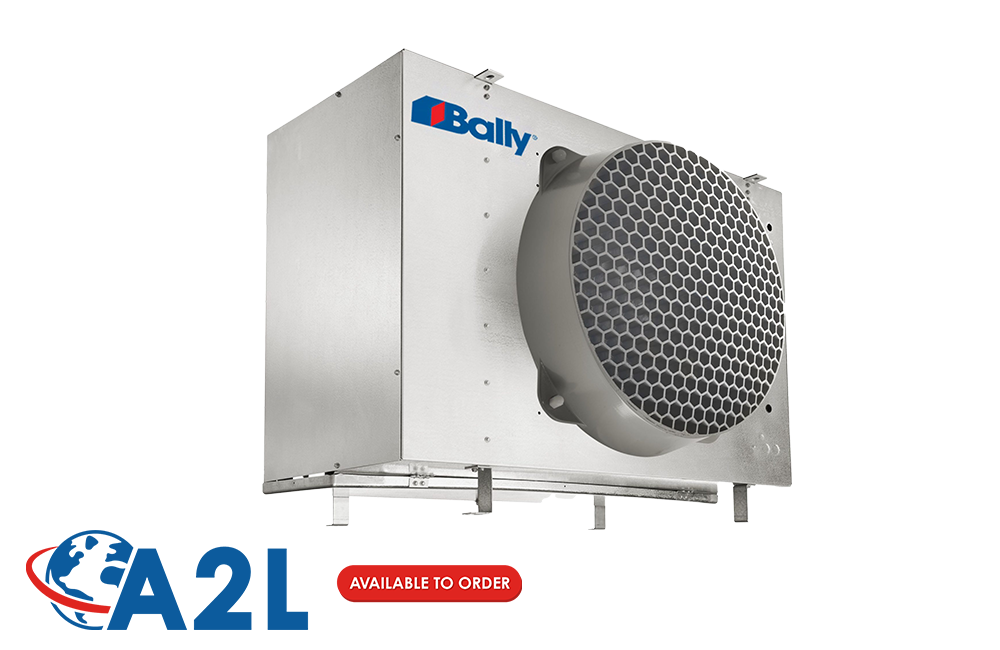

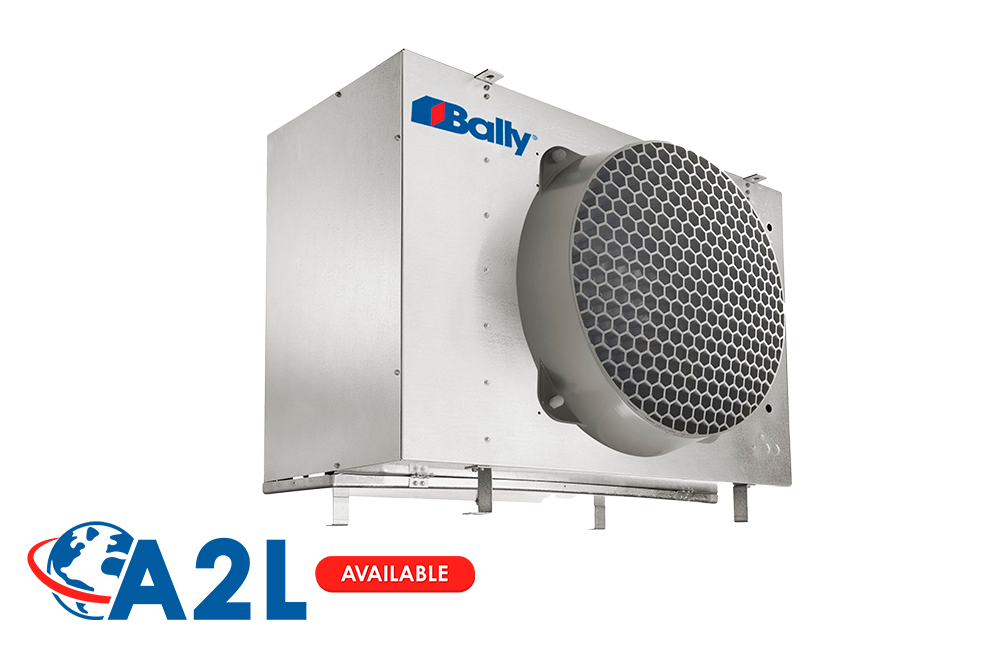

BEP Extended Profile Evaporators

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 520

Overview

The EP Extended Profile Unit Cooler line offers a flush to ceiling design featuring internally enhanced tube and our patented SmartSpeed technology. A wide range of capacities bridge between our Medium and High Profile Evaporators – offering a smaller footprint than the high profile evaporator yet delivering a sufficient amount of air throw that can be utilized in larger walk-in, warehouse, dock coolers/freezer applications.

See our Product Data and Installation for full details (PDF)

We offer a complete line up of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements. Use this guide which collects all of the AWEF numbers for DOE/NRCAN 2020 Compliant equipment: https://docs.b-rp.ca/awef/br_awef_quick_reference.pdf

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Features/Options

Certification:
Features:
  • EC motors with patented SmartSpeed® Technology.
  • Compatible with Low GWP Refrigerants
  • High efficiency and high strength fan guard
  • Hinged access panels
  • Internally enhanced tubing
  • Ample electrical and header compartments
  • Adjustable Fan Delay on Electric Defrost units
  • Liquid line solenoid valve wire harness factory installed
  • Schrader valve on suction header
  • Positive slope, hinged drain pan
  • Central drain connections (approximate)
  • Universal drain fitting
  • Large 3/4” ID (3/4” MPT) drain hole
  • Factory installed distributor nozzle
Available Options:
  • SmartVap+ Intuitive Evaporator Control Technology
  • Hot gas loop pan with hot gas defrost models
  • 230/460V Variable Speed EC Motors
  • Wire fan guard
  • Factory installed expansion valve (TXV + EEV), solenoid valve and room thermostat
  • Corrosion protection: alternate fin material and coatings
  • Additional options available, please contact factory

Specifications

Application:
  • High, Medium and Low Temperature Applications
  • -30°F and above room temperatures
  • Air, electric, hot gas & warm fluid defrost models
  • R407A, R448A, R449A, R404A, R507
Capacity:
  • High Temp. models from 28,000 to 124,000 BTUH @10°F TD
  • Medium Temp. models from 26,000 to 115,000 BTUH @10°F TD
  • Low Temp. models from 20,000 to 100,000 BTUH @10°F TD
Electrical:
  • 208-230/1/60
  • 208-230/3/60
  • 460/1/60
  • 460/3/60

Available Features and Technology

SmartSpeed

System Savings
