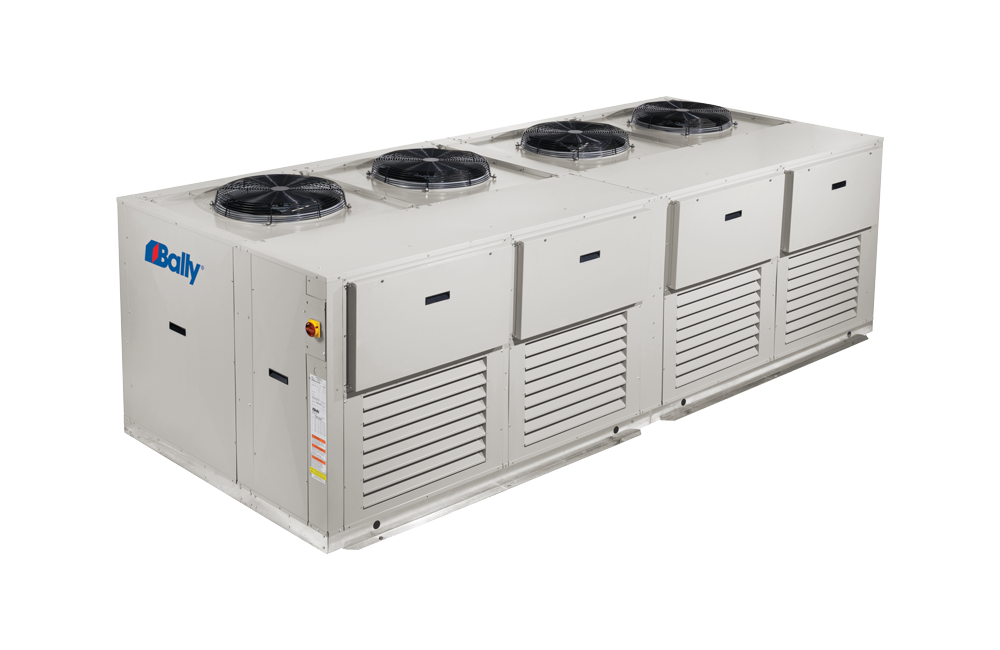

BF – Outdoor Air Cooled Multi-Compressor Condensing Units

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 524

Overview
Total system flexibility using multiple compressor models and applications on a common chassis.
Features/Options

Certification:
Features:
    • Total system flexibility using multiple compressor models and applications on a common chassis.
    • Up to four fan section cabinet choices of either Hermetic, Scroll or Semi-Hermetic multiple compressors, with maximum three compressors per fan section.
    • Small Cabinet: Compressor sizes available ranging from 1/2 through 6 HP to a maximum total of 6 HP per Fan section and 24 HP per unit. (Based on 95°F design Ambient)
    • Medium Cabinet: Compressor sizes available ranging from 1/2 through 8-10* HP to a maximum total of 8 HP per fan section and 40* HP per unit. (Based on 95°F design Ambient)
    • Semi-hermetic use suction and discharge vibration eliminators and spring mounts.
    • High efficiency enhanced tube and fin on both indoor or outdoor condenser design using high efficiency PSC fan motors
    • Outdoor unit uses weather-resistant housing with hinged hood, weatherproof electrical panel and fixed head pressure flooding valve
    • Each compressor includes main power fuse block, contactor, fixed high and low pressure control oil pressure control (where applicable) and fused control circuit
    • Compressor circuit breaker (per compressor)
    • Single Point Main electrical panel with non- fused disconnect. (Single point dependant on evaporator voltage)
    • ** Depends on application and compressor type
Available Options:
      • Sealed Suction Filter
      • Suction accumulator
      • Discharge line check valve
      • Receiver Inlet ball valve
      • Heated and insulated receiver
      • Field piping connections at left or right side
      • Flex hoses for pressure controls
      • Voltage /Phase monitor
      • Main disconnect fusing
      • Compressor anti short cycle time delay relay
      • Current sensing relay -for use with Oil control (where applicable)
      • Sentronic oil pressure control (where applicable)
      • OMB oil level Control (where applicable)
      • Air or Electric Defrost Kits
      • Pumpdown toggle switch
      • Liquid Line solenoid valve-with standard 230V coil (shipped loose)
      • Spare condenser circuit for remote ice machine
      • ** for semi-hermetic compressors – maximum one suction accumulator per fan section

Specifications

Application:
  • Outdoor Multiple Compressor Air Cooled Condensing Units
  • 1/2 to 10 HP Compressors
  • Hermetic, Scroll & Semi-Hermetic Compressor (max. 40HP total)
Capacity:
  • 1/2 to 10 HP Hermetic, Scroll & Semi-Hermetic Compressor (max. 40 HP Total)
Electrical:
  • 230/1/60
  • 208-230/3/60
  • 460/3/60
  • 575/3/60
  • 220/1/50
  • 200-220/3/50
  • 380-400/3/50
