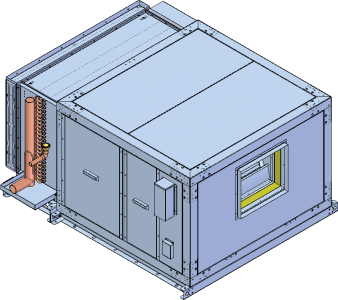

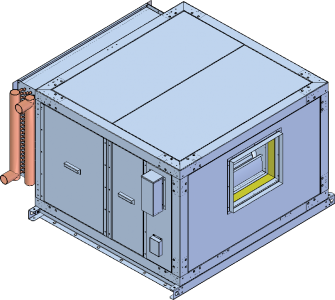

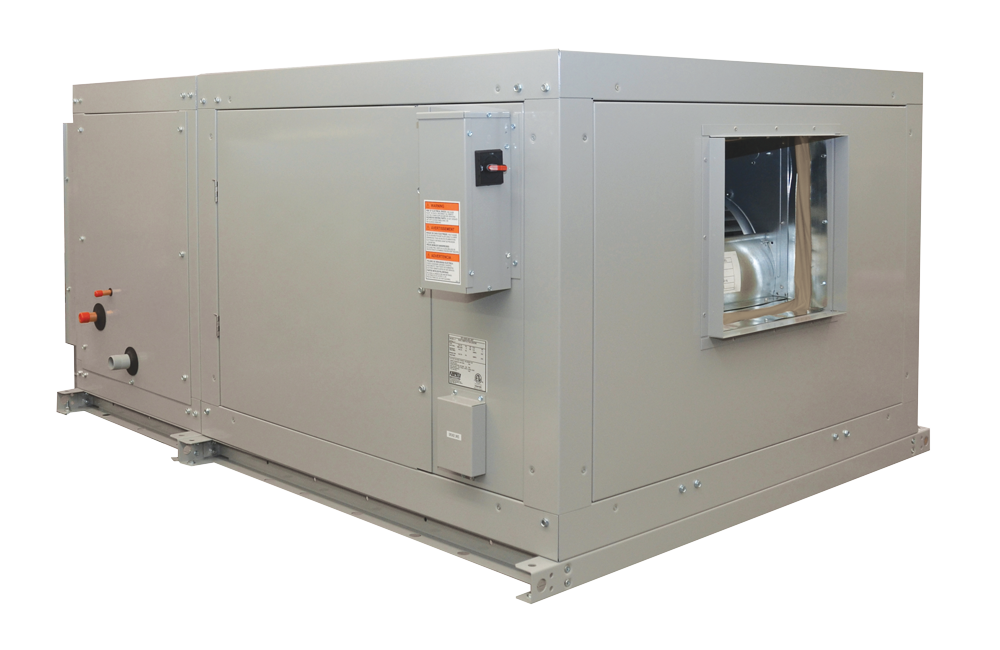

BAC, BAF, BAH – Central Station Air Handlers

Certification:

Features:

• 14 Models
• Up to 6” Total Static Pressure
• Single Wall Heavy Gauge Galvanized Cabinet
• Efficient Forward Curved Blower
• Up to 64,000 CFM
• Internal Motor
• Up to 100 HP
• ETL Certification
• Horizontal and Vertical Cabinet Styles
• External Electrical Box Mounted to Cabinet
• Extended Grease Lines with External Access
• Stainless Steel Drain Pan on All Cooling Coils

Available Options:

• Double Wall Cabinet with 2” Mineral Wool Insulation
• Outdoor Cabinet
• Internal Vibration Isolators
• Airfoil (Up to 8” Total Static Pressure)
• Disconnect Switch
• Flat Filter
• Angle Filters
• Mixing Box
• Dampers

Application:

• Indoor and Outdoor – Heating, Cooling and Ventilation Units

Electrical:

• 115/1/60
• 208-230/1/60
• 208-230/3/60
• 460/1/60
• 460/3/60
• 575/3/60
