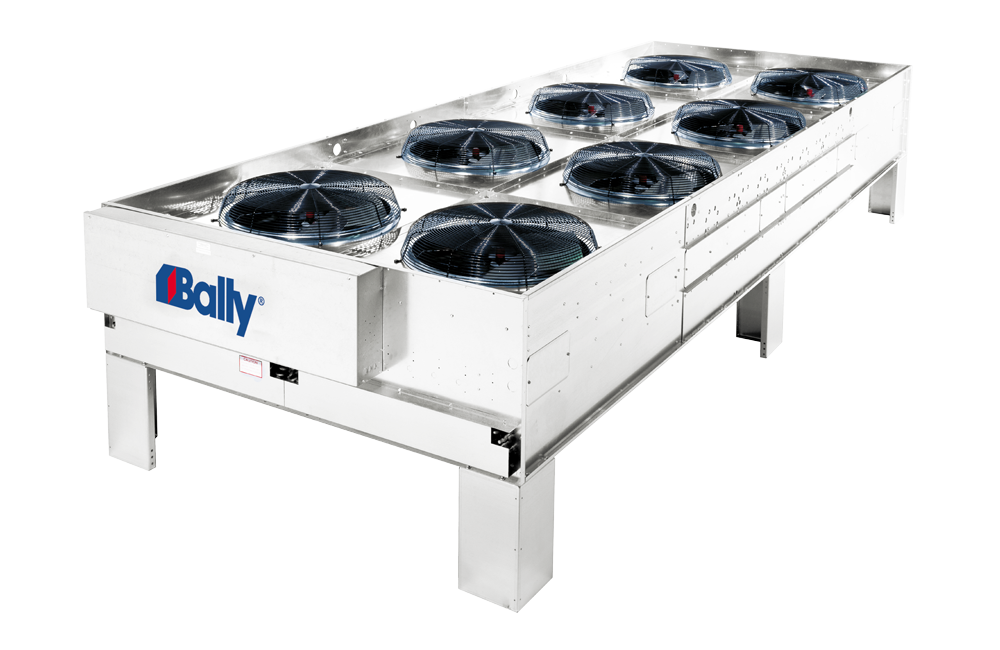

BCL – Large Air Cooled Condensers

Certification:

Features:

• • Compatible with Low GWP Refrigerants
  • Internally Enhanced Tube
  • Narrow width condenser design to suit shipment in containers.
  • THERMOSPAN™ coil design feature eliminates tube failure on tube sheets.
  • Enhanced Copper Tube, (3/8 O.D. on 1-6 Fan, 1/2 O.D. on 8-14 Fan), Aluminum Fin Condenser Coils
  • Standard 850 RPM quiet low speed dual voltage (230/460) fan motors with male electrical plug, moisture slinger, and rainshield for complete weather protection.
  • Swept wing fan for quiet operation and optimal efficiency
  • Rugged heavy-gauge galvanized steel rail motor mounts / support.
  • All fan sections individually baffled with full height partitions, and clean-out panels.
  • Complete selection of electrical fan cycling and speed control options.
  • Heavy-gauge galvanized steel cabinet construction assembled with zinc plated huck bolts supported on heavy-duty legs.
  • 2-Fan wide units have two equal circuits
  • Terminal block
  • Single entering electrical service
  • Control circuit voltage – 230 V
  • Control circuit transformer where applicable

Available Options:

Optional features (Factory Mounted)

• • • Multiple refrigeration circuits
    • Fan Cycling – Ambient thermostat / fan row with contactors
    • Fan Cycling – Pressure control / fan row with contactors
    • Fan Cycling – in pairs with ambient thermostat
    • Variable speed motor with controller for header fan motors
    • Individual fan motor fusing
    • Individual ambient thermostat or pressure control
    • Non-fused disconnect
    • Horizontal air discharge configuration
    • Variable Speed EC Motor which provides optimum efficiency and sound levels
    • Adjustable flooded head pressure control
    • Extended leg kits (36” or 48”) with cross bracing for extra rigidity
    • Optional 550 ultra low and 1140 RPM high speed motors available.
    • Adjustable Flooded HPC is factory mounted if a base frame with mounted receiver is ordered
    • Optional fin materials
    • Optional coil coating

Application:

• Refrigeration or Air Conditioning Duty
• 1 to 14 Fan Models
• Single width and double width models available
• Vertical or Horizontal Air Discharge
• Compatible with a wide variety of refrigerants: R404A, R22, R507, R407C, R-407A, R-134A, R-410A

Capacity:

• Sizes range from 12 to 230 nominal tons (based on 25° TD, R404A)

Electrical:

• 208-230/3/60
• 460/3/60
• 575/3/60
• 200-220/3/50
• 380/3/50
