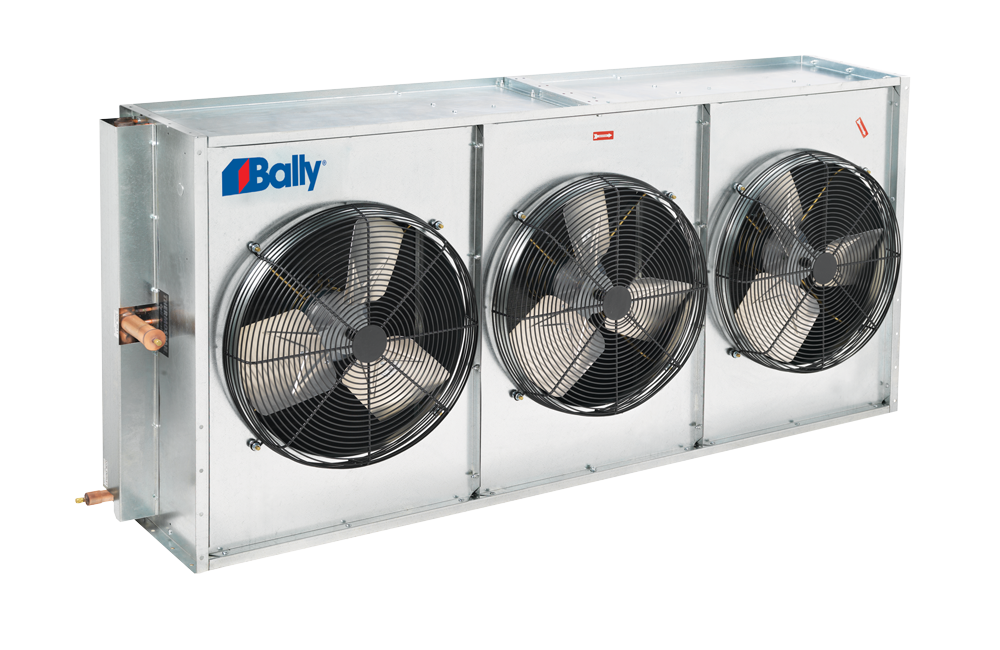

BCM – Medium Air Cooled Condensers

Certification:

Features:

• • Compatible with Low GWP Refrigerants
  • Horizontal or Vertical Air Discharge
  • Heavy Gauge Galvanized Steel Cabinet
  • ThermoSpanTM Coil Design eliminates tube failures on tube sheet
  • Internally Enhanced Tubing with Enhanced Fin optimizes coil performance
  • Energy Efficient PSC and 3 Phase Fan Motors with Internal Overload Protection
  • Quiet ‘Swept Wing’ Fan Blade
  • Fan Sections Individually Baffled with Clean-out Panels
  • Zinc Plated Huck Bolts for rigid construction
  • Heavy Duty 24” Legs
  • Double fan wide models have Two Equal Circuits
  • Control Circuit Voltage – 230 V
  • Unit shipped with Nitrogen Holding Charge

Available Options:

Optional features (Factory Mounted)

• • • Multiple Refrigeration Circuits
    • Variable Speed EC Motor which provides optimum efficiency and sound levels
    • Ambient or Pressure Fan Cycling Control with Contactor
    • Variable speed motor with controller for header fan motors
    • Individual Fan Motor Fusing
    • Non-Fused Disconnect
    • Receiver with or without Heater and Insulation (base frame is required to factory mount receiver)
    • Adjustable Flooded Head Pressure Control (factory mounted if ordered with receiver option)
    • Extended Leg Kits (36″ or 48”) with Cross Bracing for Extra Rigidity
    • Horizontal Configuration
    • Optional fin materials
    • Optional coil coating

Application:

• Refrigeration or Air Conditioning Duty
• 1 to 8 Fan Models
• Vertical or Horizontal Air Discharge
• For use with a wide variety of popular refrigerants (including Low GWP)

Capacity:

• Sizes range from 9 to 95 Nominal Tons (based on 25°F TD, R404A)

Electrical:

• 208-230/1/60
• 208-230/3/60
• 460/3/60
• 575/3/60
• 200-220/1/50
• 200-220/3/50
• 380/3/50
