Overview

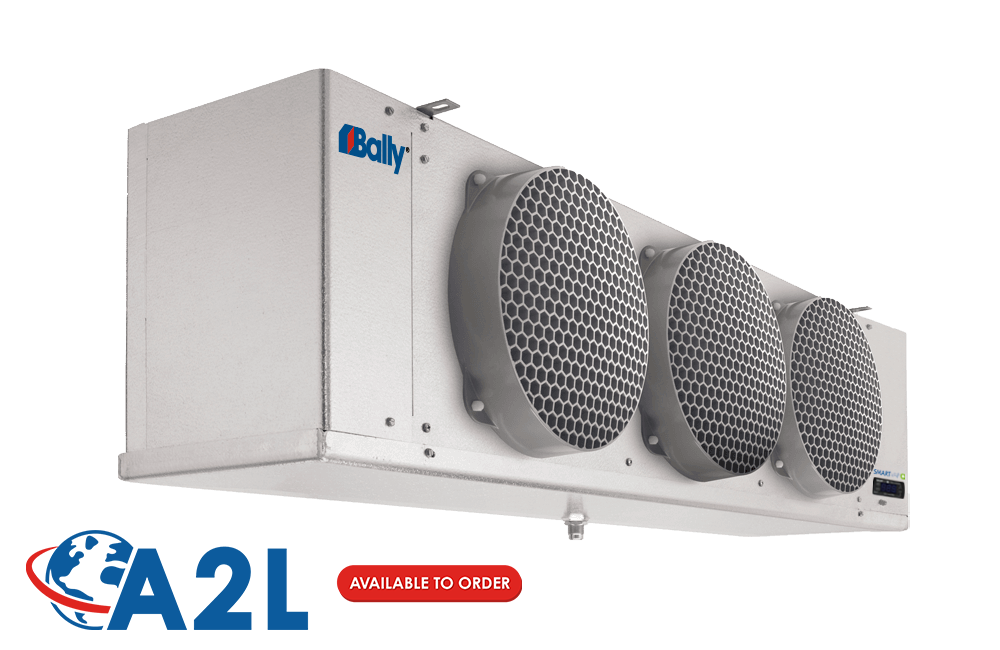

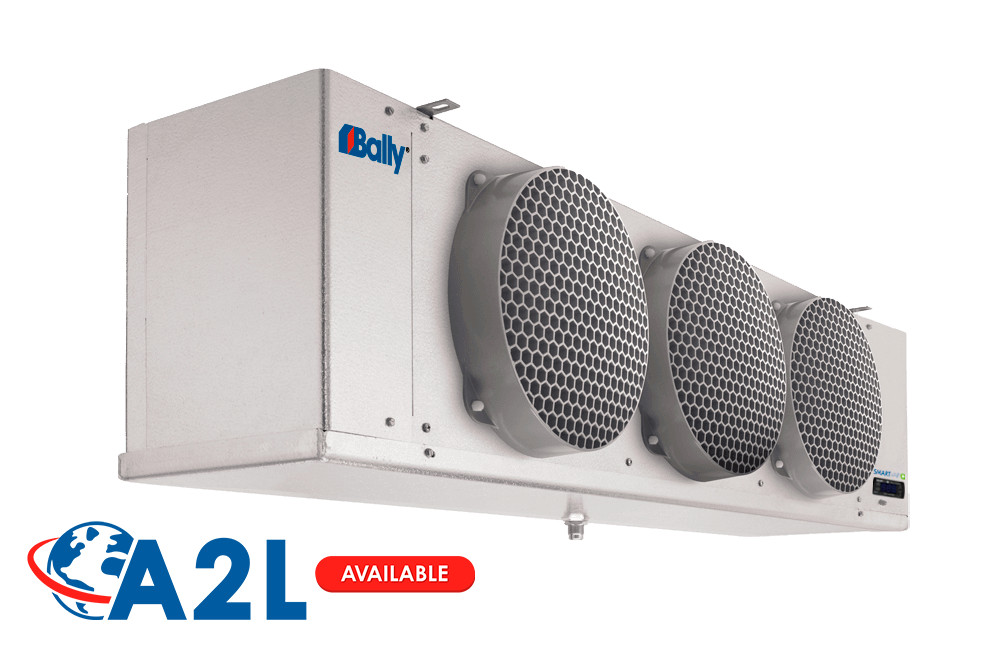

The LP Low Profile Unit Cooler line offers a compact flush to ceiling design featuring internally enhanced tube technology. Storage space is optimized by a compact, slim profile, which provides uniform air distribution through the coil for maximum heat transfer performance. Many models also available as value-priced pre-assembled units.

See our Product Data and Installation for full details (PDF)

We offer a complete line up of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements. Use this guide which collects all of the AWEF numbers for DOE/NRCAN 2020 Compliant equipment: https://docs.b-rp.ca/awef/br_awef_quick_reference.pdf

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Features/Options

Certification:
Features:
  • EC motors with patented SmartSpeed® Technology.
  • Compatible with Low GWP Refrigerants
  • High efficiency and high strength fan guard
  • Front access
  • Internally enhanced tubing
  • Convenient mounting brackets
  • Ample electrical and header compartments
  • Liquid line solenoid valve wire harness factory installed
  • Schrader valve on suction header
  • Positive slope, hinged drain pan
  • Central drain connections (approximate)
  • Universal drain fitting
  • Large 3/4” ID (3/4” MPT) drain hole
  • Factory installed distributor nozzle
Available Options:
  • SmartVap+ Intuitive Evaporator Control Technology
  • Hot gas loop pan with hot gas defrost models
  • Factory installed expansion valve, solenoid valve and room thermostat
  • Wire fan guard
  • Corrosion protection: alternate fin materials and coatings
  • Additional options available, please contact factory

Specifications

Application:
  • Medium and Low Temperature Applications
  • -30°F and above room temperatures
  • Air, electric and hot gas defrost (reverse cycle or 3 pipe) models
  • R407A, R448A, R449A, R404A, R507
Capacity:
  • Medium Temp. models from 4,180 to 39,200 BTU/h @10°F TD
  • Low Temp. models from 3,410 to 32,000 BTU/h @10°F TD
Electrical:
  • 115/1/60
  • 208-230/1/60
  • 208-230/3/60

Available Features and Technology

System Savings
