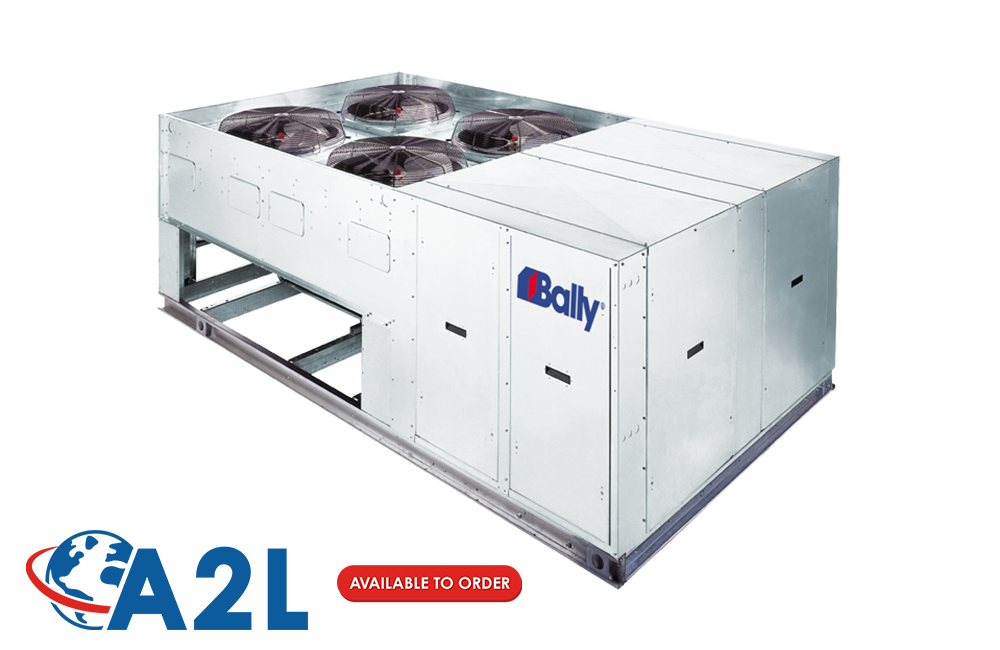

BV – Large Outdoor Air Cooled Condensing Units

Certification:

Features:

• • Compatible with Low GWP Refrigerants
  • Units are CULUS Listed.
  • Designed for use with various popular refrigerants.
  • Energy efficient compressors with POE or mineral oil.
  • Several compressor options to choose from: Copeland Discus and Bitzer reciprocating.
  • Single, Dual and parallel-piped (optional) compressor configurations available.
  • ThermospanTM condenser core design eliminates tube sheet leaks and provides reliable operation.
  • 3/8″ condenser tubes reduce refrigerant charge.
  • Generously sized condenser allows unit to operate at higher than normal ambient conditions.
  • Optional coating and fin surfaces for condenser core protection available.
  • Specially designed, thermally protected and permanently lubricated ball bearing condenser fan motor(s).
  • Receivers (where used) are liberally sized and include inlet as well as outlet service valves.
  • Subcooling circuit in condenser on all models (except on H8 models) increases overall system efficiency and provides dependable compressor operation.
  • Utilizes pre-formed internal piping, eliminates welded joints and reduces chances of a leak.
  • Electrical components are housed in a spacious and conveniently located panel. In case of a compressor trip, (except on air conditioning models) a lock-out relay de-energizes the liquid line solenoid valve. In addition, SPDT contact is provided for field wired alarm circuit.
  • End compartment panels allow unrestricted access to service the compressor(s) and all other components.
  • Raceway for pressure control wiring and connections provides neat appearance.
  • Units are available with energy efficient ThermosaverTM hot gas defrost option.
  • Units are environmentally friendly operating on less power and refrigerant charge.

Standard features include:

• • Spring mount compressor with discharge vibration eliminator.
  • Compressor head cooling fans on low temperature models (except L8 units)
  • Compressor crankcase heater
  • Flexible hose on all compressor pressure control connections
  • Two valve adjustable (pre-set at factory) low ambient head pressure control.
  • Condenser fan cycling control (pressure) on two-fan models and up.
  • Fused condenser fan motors
  • Receiver inlet/outlet valves and safety pressure relief valve
  • Replaceable liquid line drier & sight glass
  • Anti-short cycle time delay relay
  • Oil failure control (non-electronic)
  • Separate HP and LP compressor controls.
  • Part-winding start on all 30 HP and up, operating on 208/230V-3Ph.
  • Lock out relay.
  • Sub-cooling circuit on medium and low temperature units.
  • Electronic liquid injection on L8 units.

Available Options:

• • • Limitrol+ Head Pressure Control System
    • Suction line vibration eliminator
    • Suction accumulator (with or without heat exchanger)
    • Replaceable suction filter
    • Insulated suction lines.
    • Crankcase Pressure Regulating valve
    • Compressor capacity control (cylinder unloading on 4D-6D-6F compressors or ModuloadTM on 3D compressor)
    • Discharge line check valve
    • Hot gas bypass tees / regulating valves / de-superheating TXV
    • Oil separator
    • Oversized condenser
    • Oversized receiver
    • Heated and insulated receiver
    • ThermosaverTM defrost.
    • Disconnect switch (fused or non-fused).
    • Compressor circuit breaker
    • Electronic Oil failure control
    • Voltage / Phase monitor
    • Part-winding start (standard on 30HP and up operating on 208/230-3)
    • Defrost Time clock
    • Defrost Heater / Evaporator Fan Contactors with fuse block
    • Single point electrical service hook up for evaporator and controls
    • Variable speed EC motors only as head pressure control

Application:

• High, medium and low temperature applications.
• Dual or Single Compressor

Capacity:

• Nominal Capacities from 10 to 100 Tons for high, medium and low temperature applications

Electrical:

• 208-230/3/60
• 460/3/60
• 575/3/60
• 200-220/3/50
• 380-400/3/50
