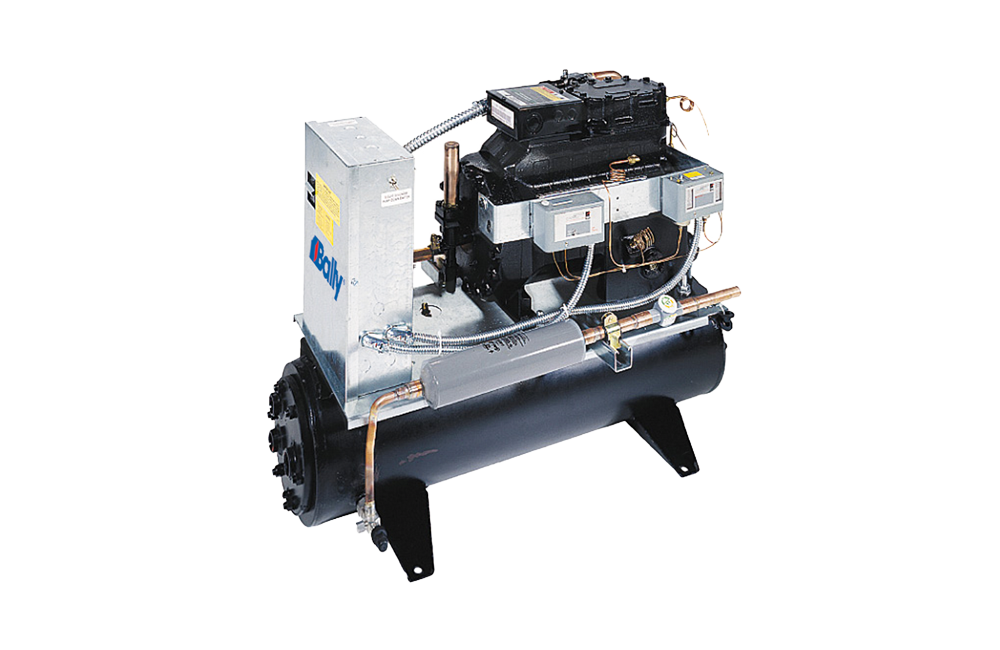

BW-Line – Water Cooled Condensing Units

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 523

Overview
The BW-Line Water Cooled Condensing Unit can be applied where air cooled units are not desirable, or space is unavailable. This unit can operate with tower or city water and its size will allow operation in a minimum space; Shell and tube condensers are standard. Available with high efficiency scroll or accessible semi-hermetic compressors.
Features/Options

Certification:
Features:
    • Compatible with low GWP Refrigerants
    • Rubber mounted scroll compressors or Spring mounted, accessible semi-hermetic compressors
    • Discharge vibration eliminator
    • Copper tubing secured with Hydra-Zorb / Cush-A-Clamp
    • Shell and tube water cooled condenser with fusible plug or pressure relief valve and liquid shut off valve
    • Adjustable dual high / low pressure control
    • CoreSenseTM on all applicable models
    • Suction and discharge service valve
    • Flex hose on all controls
    • Time delay relay for compressor
    • Auxiliary cooling on low temperature models
    • Unit leak tested and shipped with helium holding charge
    • Hinged access panel electrical control box with compressor contactor and fused control circuit
Available Options:
      • Suction accumulator with or without heat exchanger
      • Sealed or replaceable core suction filter with vibration eliminator
      • Oil separator c/w oil return solenoid valve
      • Sealed or replaceable core liquid line filter drier
      • Liquid line solenoid valve w/ 115 and 230 volt coils (shipped loose)
      • Ball valve (shipped loose)
      • Compressor circuit breaker
      • Compressor time delay relay
      • Pump down toggle switch
      • Time clock
      • Defrost contactor with fuse block
      • Evaporator fan contactor with fuse block
      • Fused disconnect
      • Phase / voltage monitor
      • Water valve (shipped loose)
      • Marine duty (cupro-nickel) condenser
      • Additional options available, please consult factory

Specifications

Application:
  • Indoor water cooled high, medium and low temperature applications.
Capacity:
  • Sizes range from ¾ to 17 HP (scroll) and ½ to 40 HP (semi-hermetic)
Electrical:
  • 208-230/1/60
  • 208-230/3/60
  • 460/3/60
  • 575/3/60

Description

Bally Refrigeration is a leading manufacturer of Water Cooled Condensing Units. Ideally suited for warehouse/industrial cooler and freezer applications. The BW-Line water-cooled condensing unit can be applied where air-cooled units are not desirable, or space is unavailable. This commercial refrigeration condensing unit can operate with tower or city water and its size will allow operation in a minimum space; Shell and tube condensers are standard. The condensing unit is available with high-efficiency accessible scroll or semi-hermetic compressors.

The shell and tube refrigeration condensing unit is designed for application in Industrial refrigeration systems, walk-in coolers and can be easily integrated with a remote commercial refrigeration system.

We offer a wide selection of compact size units with several customization options a wide variety of options to suit your application. All our products are high quality with the most advanced technology.
