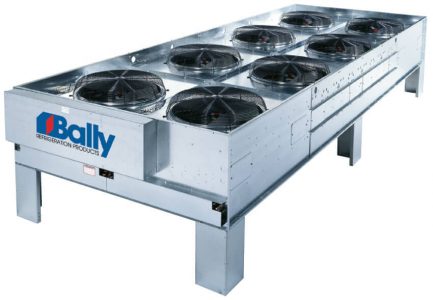

BFM – Medium Direct Drive Fluid Coolers

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 526

Overview
Direct Drive Fluid Coolers for use with water or glycol/water mixtures as fluids for:

  • Process Fluid Cooling
  • Glycol and “Free Cooling” for Computer Room (Data Center) Cooling
  • Secondary Heat Exchangers
  • Secondary Fluid for Supermarket Systems
  • Remote Radiators for Diesel or Gas Engines
  • Fan Diameter 26 in 30° Pitch
  • Fan Motor Nom. ¾ HP @ 1,075 RPM

Features/Options

Certification:
Features:
  • Heavy-gauge galvanized steel cabinet construction
  • Energy efficient PSC and 3 phase fan motors with internal overload protection
  • Quiet “swept wing” fan blade for quiet operation and optimal efficiency
  • Heavy duty 24” legs
  • All fan sections individually baffled with clean-out panels.
  • Zinc plated huck bolts
  • Control circuit voltage – 230 V
Available Options:

Optional features (Factory Mounted)

  • Fan Cycling – Ambient thermostat / fan row with contactors
  • Fan Cycling – Aquastat thermostat fan cycling control / outlet fluid temperature
  • Individual fan motor fusing
  • Non-fused disconnect
  • Horizontal air discharge configuration
  • Variable Speed EC Motor which provides optimum efficiency and sound levels
  • Extended leg kits (36” or 48”) with cross bracing for extra rigidity
  • Mounted flange sets
  • Optional fin materials
  • Optional coil coating
  • Voltages available for 60Hz or 50Hz

Specifications

Application:
  • Water or glycol/water mixtures as fluids
  • Process Fluid Cooling
  • Glycol and “Free Cooling” for Computer Room (Data Center) Cooling
  • Secondary Heat Exchangers
  • Secondary Fluid for Supermarket Systems
  • Remote Radiators for Diesel or Gas Engines
  • Suitable for other process cooling applications beyond water & water/glycol mixtures (i.e.: Solest POE Oil, Transformer Oil, Hycool 20, etc.)
Capacity:
    • One to four fan motors
Electrical:
      • 208-230/1/60
      • 208-230/3/60
      • 460/1/60
      • 460/3/60
      • 575/1/60
      • 575/3/60
      • 200-220/3/50
      • 380-400/3/50
