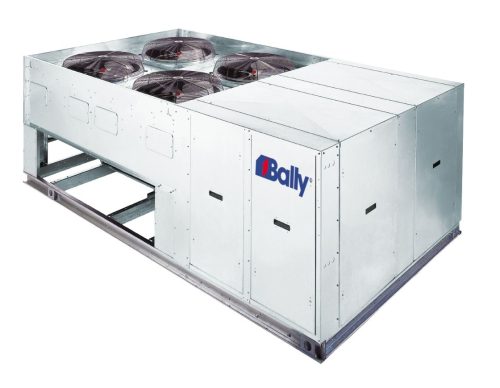

BM – Medium Outdoor Air Cooled Condensing Units
July 21, 2016
BW-Line – Water Cooled Condensing Units
July 21, 2016
Show all

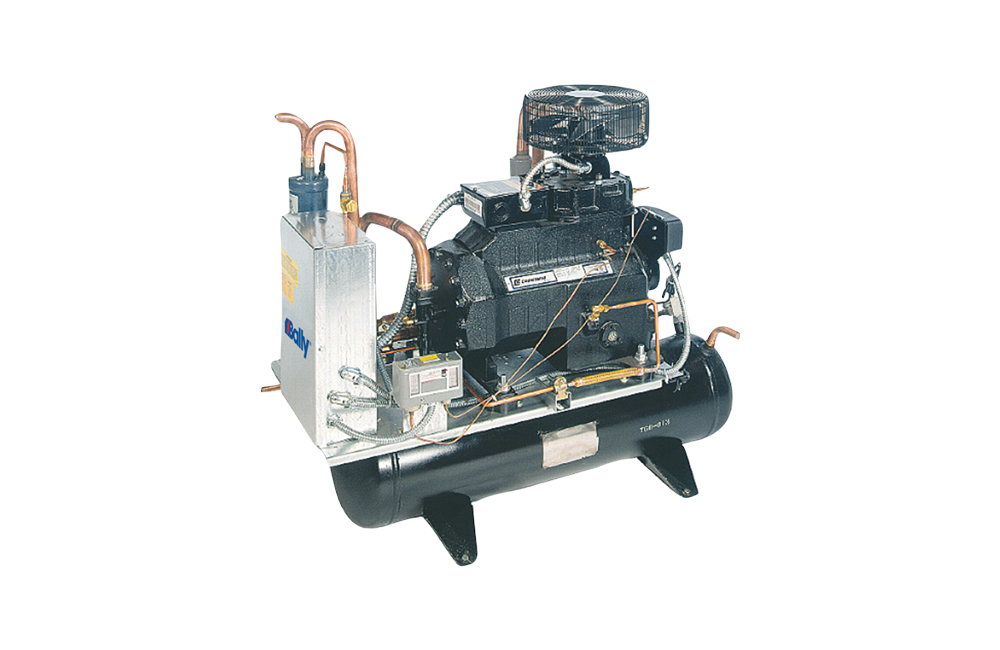

BR – Indoor Compressor Unit for Remote Condenser

CONTACT A PRODUCT SPECIALIST TODAY:

rcu-wccu@b-rp.ca
1-844-893-3222 ext. 523

Overview

Designed for use with a remote air-cooled condenser, the BR-Line compressor unit for remote condenser is typically used for supermarket, large warehouse and applications where indoor space is at a premium. Consisting of high efficiency accessible semi-hermetic or scroll compressors, the BR-Line unit is available with options suited to your specific needs.

Features/Options

Certification:
Features:
    • Compatible with Low GWP Refrigerants
    • Spring mounted semi hermetic compressor with discharge and suction vibration eliminator or rubber mounted scroll compressors
    • Electronic liquid injection on L8 units
    • Copper tubing secured with Hydra-Zorb / Cush-A-Clamp
    • Receiver with fusible plug or pressure relief valve and liquid shut off valve
    • Flex hose on all controls
    • Adjustable dual high / low pressure control
    • CoreSenseTM on all applicable models
    • Suction and discharge service valves
    • Time delay relay for scroll compressor
    • Unit leak tested and shipped with helium holding charge
    • Hinged access panel electrical control box with compressor contactor and fused control circuit
Available Options:
      • Suction accumulator with or without heat exchanger
      • Sealed or replaceable core suction filter
      • Oil separator c/w oil return solenoid valve
      • Oversized receiver
      • Receiver inlet valve
      • Sealed or replaceable core liquid line filter drier
      • Liquid line solenoid valve w/ 115 and 230 volt coils (shipped loose)
      • Ball valve (shipped loose)
      • Two valve adjustable flooded head pressure control
      • Compressor circuit breaker
      • Compressor time delay relay
      • Pump down toggle switch
      • Time clock – factory mounted and wired or shipped loose
      • Defrost contactor with fuse block
      • Evaporator fan contactor with fuse block
      • Fused disconnect
      • Phase / voltage monitor
      • Compressor crankcase heater
      • Compressor unloading
      • Insulated suction lines
      • Crankcase pressure regulating valve
      • Additional options available, please consult factory

Specifications

Application:
  • High, medium and low temperature applications.
Capacity:
  • Sizes range from ½  to 40 HP (semi-hermetic) and ¾ to 17 HP (scroll) for high, medium and low temperature applications
Electrical:
  • 208-230/1/60
  • 230/1/60
  • 208-230/3/60
  • 460/3/60
  • 575/3/60

Description

Designed for use with a remote air-cooled condenser, the BR-Line compressor unit for remote condenser is typically used for supermarket, large warehouse and applications where indoor space is at a premium.
